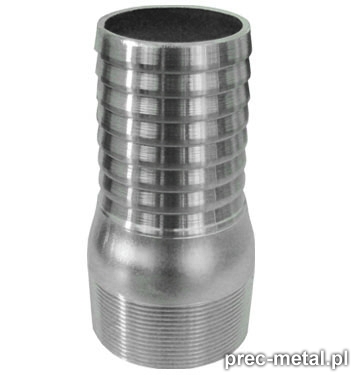

Combination nipples recommended for low-pressure discharge and suction service for compatible liquids.
The working pressure of combination nipples will vary with the size and construction of the hose, the type and number of clamps used, clamp placement, proper installation of clamps, temperature and product being conveyed. In accordance with the RMA bulletin for oil suction and discharge hose, a coupled length of hose, in any size should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement.
Size |
Hose ID |
Part Number |
|||
Steel |
Zinc plated |
Stainless 304SS |
Stainelss 316SS |
||
[cal] |
[mm] |
||||
1/2 |
13 |
PM050S-A |
PM050SP-A |
PM050SS-A |
PM050SS-16A |
3/4 |
19 |
PM075S-A |
PM075SP-A |
PM075SS-A |
PM075SS-16A |
1 |
25 |
PM100SA |
PM100SP-A |
PM100SS-A |
PM100SS-16A |
1.1/4 |
32 |
PM125S-A |
PM125SP-A |
PM125SS-A |
PM125SS-16A |
1.1/2 |
40 |
PM150S-A |
PM150SP-A |
PM150SS-A |
PM150SS-16A |
2 |
50 |
PM200S-A |
PM200SP-A |
PM200SS-A |
PM200SS-16A |
2.1/2 |
65 |
PM250S-A |
PM250SP-A |
PM250SS-A |
PM250SS-16A |
3 |
75 |
PM300S-A |
PM300SP-A |
PM300SS-A |
PM300SS-16A |
4 |
100 |
PM400S-A |
PM400SP-A |
PM400SS-A |
PM400SS-16A |
4 |
110 |
PM440S-A |
PM440SP-A |
PM440SS-A |
PM440SS-16A |
5 |
125 |
PM500S-A |
PM500SP-A |
PM500SS-A |
PM500SS-16A |
6 |
150 |
PM600S-A |
PM600SP-A |
PM600SS-A |
PM600SS-16A |
